Postby Brad » Mon Jun 02, 2008 1:13 pm

Mighty Whitey wrote:Why not notch the frame ?


Did you look at the tie rod end? BGs question was do I have the right end......It is right?
Brad
Brad
90 day'd out

Posts: 9305
Joined: Mon Apr 10, 2006 12:16 pm
Location: Southern Mississippi

Postby Mighty Whitey » Mon Jun 02, 2008 1:40 pm

Same part # that walter had on his 60. its not the rod end that ur problem, its the clearance of your steering. MOST and i said most people who install 60's have somewhat of a arched spring pack where as yours is completely flat. Look at Ballistics chevy 1 ton steering kit. Its the same as what you got but urs is cheaper.
Boomhower voice
"Mandemdangumoleboywtihdemtrucksbigoletiressheetmetaldamagemandontcare." end Boomhower voice
User avatar
Mighty Whitey
Webwheeler

Posts: 4018
Joined: Mon Apr 17, 2006 3:33 pm
Location: Where ever welding is needed.

Postby Brad » Mon Jun 02, 2008 1:43 pm

Mighty Whitey wrote:Same part # that walter had on his 60. its not the rod end that ur problem, its the clearance of your steering. MOST and i said most people who install 60's have somewhat of a arched spring pack where as yours is completely flat. Look at Ballistics chevy 1 ton steering kit. Its the same as what you got but urs is cheaper.

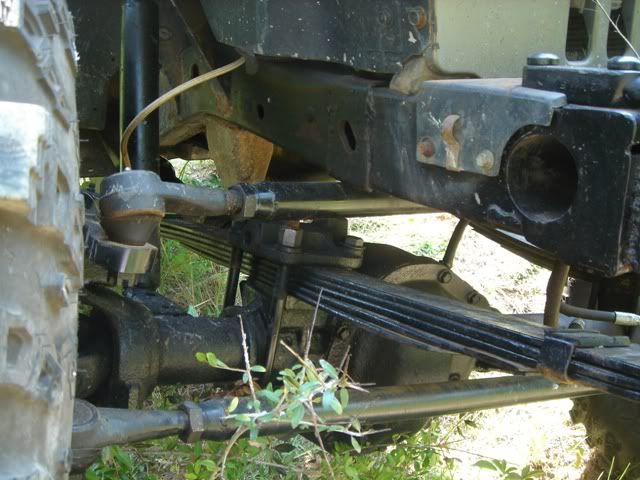

TJ...look at the nut on the end of the tie rod...(ie no threads to put a cotter pin thru) and look at how high it sits on the arm......does the hole in the arm need to be bigger to have the tie rod slide down farther?

Brad
Brad
90 day'd out

Posts: 9305
Joined: Mon Apr 10, 2006 12:16 pm
Location: Southern Mississippi

Postby BigGreenMonster » Mon Jun 02, 2008 1:45 pm

Brad wrote:
Mighty Whitey wrote:Why not notch the frame ?


Did you look at the tie rod end? BGs question was do I have the right end......It is right?


correct... shaker sends his junk out in a kit. i could not use the crossover yet as my coilovers are in the way... so i have a chevy tre on a ford knuck... well i have the same problem with the threads not sticking out from the nut. if you look at te ruber cap it is not even tight... i wold say the taper on your end does no juve with your arms... or here is a buch or pain or trash in them. something is up there.

as far as the hitting... throw an arch leaf in there just to raise it a tad
87 toy... mostly stock

traction bars are for drag cars!

G.D.I. Mo. Fo.
User avatar
BigGreenMonster
Webwheeler

Posts: 1391
Joined: Mon Apr 10, 2006 2:52 pm
Location: SC... on your mom

Postby John Sweet » Mon Jun 02, 2008 2:37 pm

BigGreenMonster wrote:i wold say the taper on your end does no juve with your arms...



ding ding ding

Looks to me like you need to ream the arm or get the correct TRE for the drag link.
happy... happy... happy...
User avatar
John Sweet
Webwheeler

Posts: 3869
Joined: Sun Apr 09, 2006 6:28 pm
Location: Mobile, Al

Postby Nick@lockitup » Mon Jun 02, 2008 3:25 pm

+1, those are going to tink off pretty easily.
Try the ES2234R tie rod ends. I have them under warranty at AZ
Own3d by murphy
User avatar
Nick@lockitup
90 day'd out

Posts: 1928
Joined: Sun Apr 09, 2006 9:11 pm

Postby Reggie » Mon Jun 02, 2008 5:20 pm

You need to limit that ram before you rip the box off the frame...or get a longer pitman arm (waggy)

http://pirate4x4.com/forum/showthread.p ... pitman+arm

http://pirate4x4.com/forum/showthread.p ... pitman+arm

to limit your ram

https://www.surpluscenter.com/sort.asp? ... t%20collar
the Ultimate Mall Crawler Toyota
User avatar
Reggie
4-Wheeling God

Posts: 842
Joined: Tue Feb 06, 2007 9:01 am
Location: Biloxi, MS

Postby Nick@lockitup » Mon Jun 02, 2008 5:35 pm

Brad I have a spare waggy pitman arm if you want it....
Own3d by murphy
User avatar
Nick@lockitup
90 day'd out

Posts: 1928
Joined: Sun Apr 09, 2006 9:11 pm

Postby Brad » Mon Jun 02, 2008 6:24 pm

Nick@lockitup wrote:Brad I have a spare waggy pitman arm if you want it....


Hell yeah......I suppose its at the house?
Brad
Brad
90 day'd out

Posts: 9305
Joined: Mon Apr 10, 2006 12:16 pm
Location: Southern Mississippi

Postby Brad » Mon Jun 02, 2008 6:30 pm

I have a astro pitman arm...its longer than the arm I have now and its flat.....

Looking at the pirate post he has the same set up I have...yj box, d60 axle and TJ pitman arm.
Brad
Brad
90 day'd out

Posts: 9305
Joined: Mon Apr 10, 2006 12:16 pm
Location: Southern Mississippi

Postby Brad » Mon Jun 02, 2008 6:36 pm

Reggie wrote:You need to limit that ram before you rip the box off the frame...or get a longer pitman arm (waggy)

http://pirate4x4.com/forum/showthread.p ... pitman+arm

http://pirate4x4.com/forum/showthread.p ... pitman+arm

to limit your ram

https://www.surpluscenter.com/sort.asp? ... t%20collar


Thanks reggie!!!! gonna do this on the weekend!
Brad
Brad
90 day'd out

Posts: 9305
Joined: Mon Apr 10, 2006 12:16 pm
Location: Southern Mississippi

Postby greg@lockitup » Mon Jun 02, 2008 7:10 pm

ugh... 13th hour work.. :P
User avatar
greg@lockitup
Site Admin/Club Member

Posts: 28134
Joined: Sun Apr 09, 2006 5:47 pm
Location: Louisville, KY

Postby Nick@lockitup » Mon Jun 02, 2008 7:16 pm

Brad wrote:I have a astro pitman arm...its longer than the arm I have now and its flat.....

Looking at the pirate post he has the same set up I have...yj box, d60 axle and TJ pitman arm.

It's actually here. I have a spare TRE too. If you really want them i could ship it tommorow or wed
Own3d by murphy
User avatar
Nick@lockitup
90 day'd out

Posts: 1928
Joined: Sun Apr 09, 2006 9:11 pm

Postby Reggie » Mon Jun 02, 2008 7:49 pm

Brad wrote:
Reggie wrote:You need to limit that ram before you rip the box off the frame...or get a longer pitman arm (waggy)

http://pirate4x4.com/forum/showthread.p ... pitman+arm

http://pirate4x4.com/forum/showthread.p ... pitman+arm

to limit your ram

https://www.surpluscenter.com/sort.asp? ... t%20collar


Thanks reggie!!!! gonna do this on the weekend!


no prob!!!
the Ultimate Mall Crawler Toyota
User avatar
Reggie
4-Wheeling God

Posts: 842
Joined: Tue Feb 06, 2007 9:01 am
Location: Biloxi, MS

Postby Mighty Whitey » Tue Jun 03, 2008 6:51 am

john sweet wrote: or get the correct TRE for the drag link.

I got him the rod ends and i got the part #s off walter which are the same #'s that came off the dana 60 bible on pirate. I had the same problem with my rod end on the highsteer arm. Wrong part # ???????
Boomhower voice
"Mandemdangumoleboywtihdemtrucksbigoletiressheetmetaldamagemandontcare." end Boomhower voice
User avatar
Mighty Whitey
Webwheeler

Posts: 4018
Joined: Mon Apr 17, 2006 3:33 pm
Location: Where ever welding is needed.
